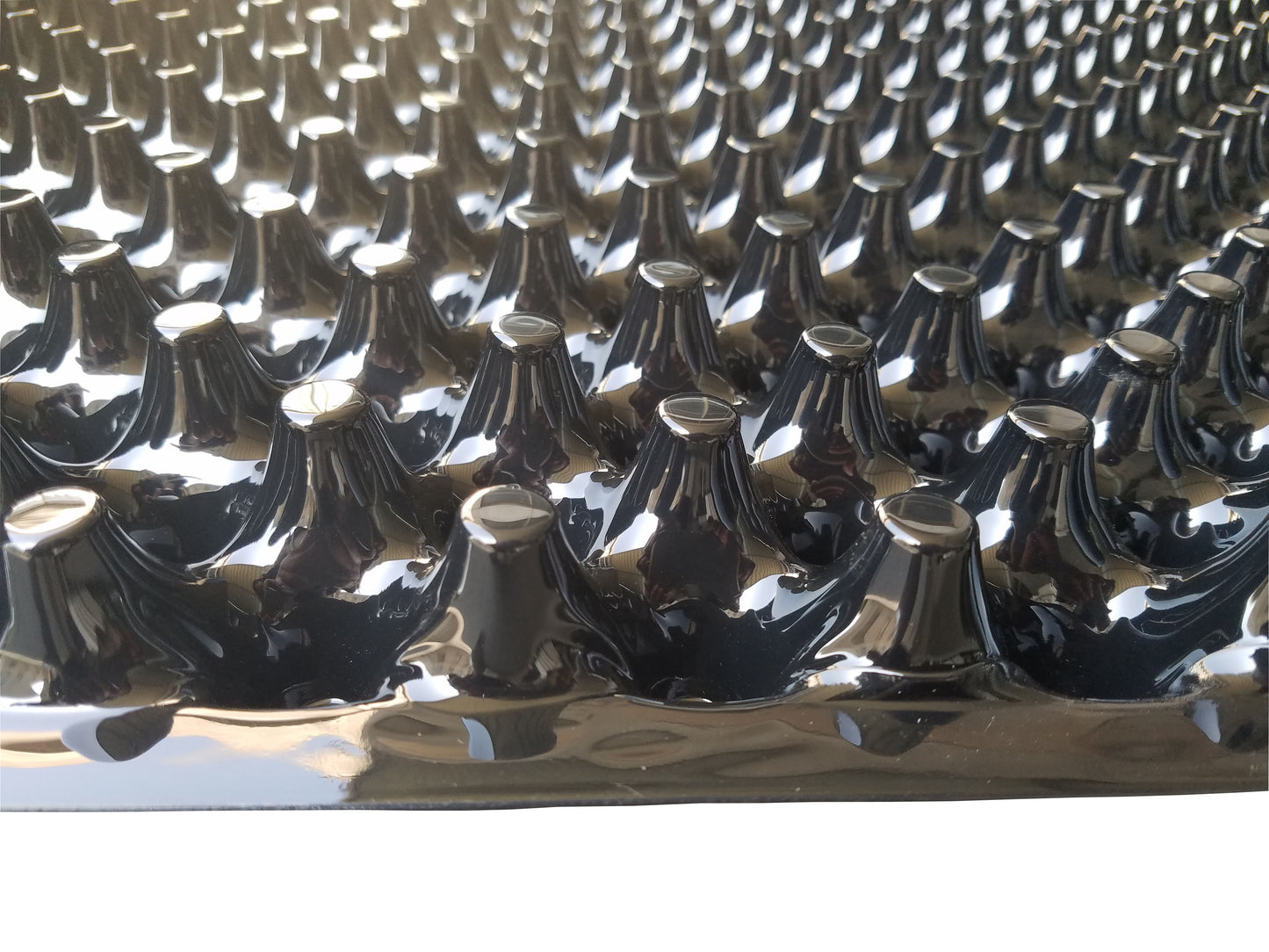

InfraDrain40

Strip Filter Drains, also known as prefabricated geocomposite drains are designed for sub-surface drainage behind shotcrete walls. They reduce hydrostatic pressure against a wall or slab and assist in maintaining the structural integrity of the wall from grade to footer. When properly installed, behind walls strip drains allow their design loads to be reduced by between 40% and 180%. Geocomposite drains are also easier to construct than aggregate drains on steep faces.

Size: 100/200/300mm x 40mm

Material: PVC

Roll Length: 50m

Flow: 130L/min/m

Compressive strength: >150kPa

Roll Dimensions (WxD in mm): 100x1600 / 200x1650 / 300x1700

Weight: 11/20.5/26.5kg
