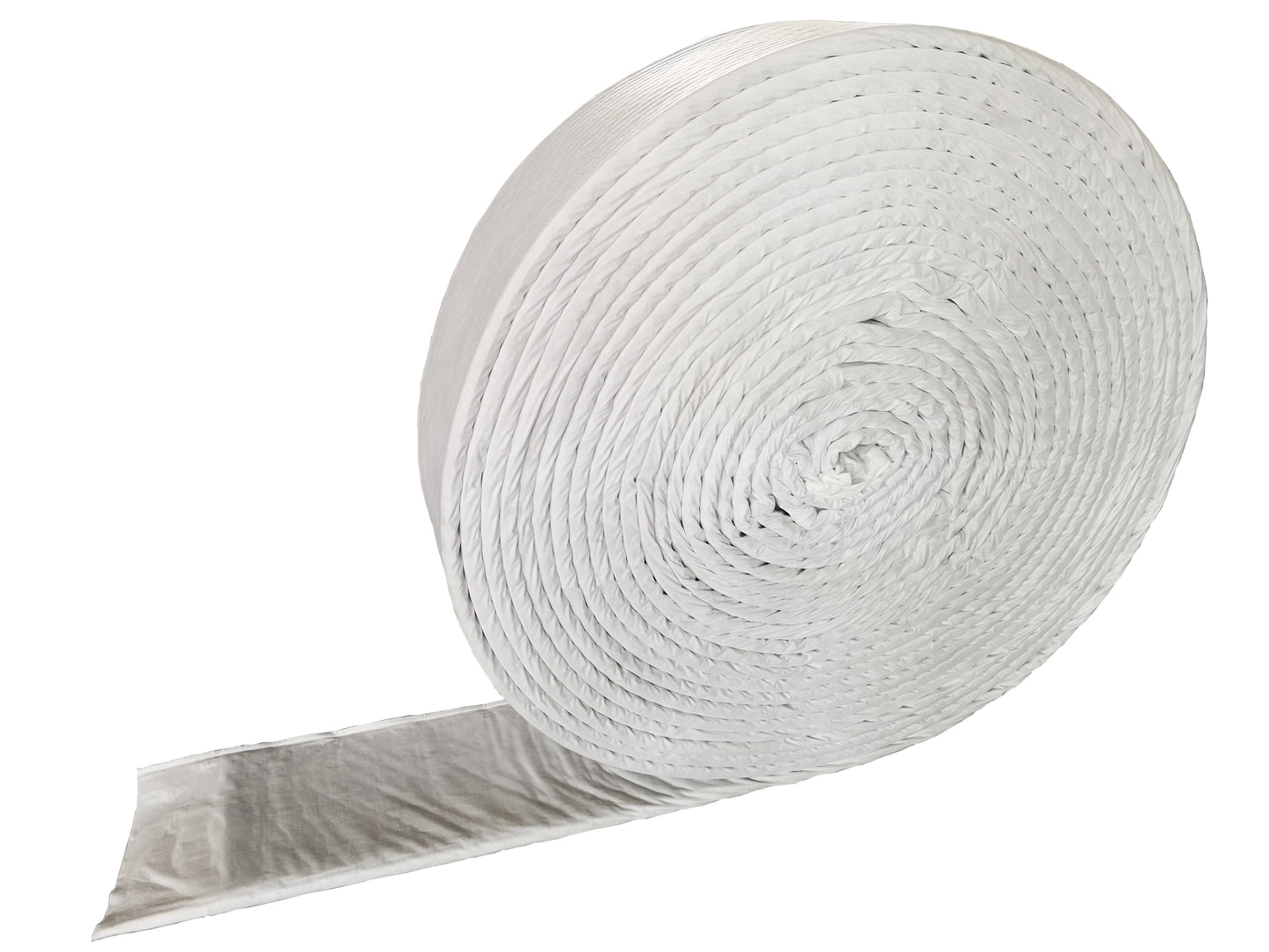

100/200/300mm x 25mm Strip Drain

Regular price $300.00 AUD
Regular price Sale price $300.00 AUD
Sale Sold out

Click on PDF to download the Product Data Sheet

Click on PDF to download the Case Study

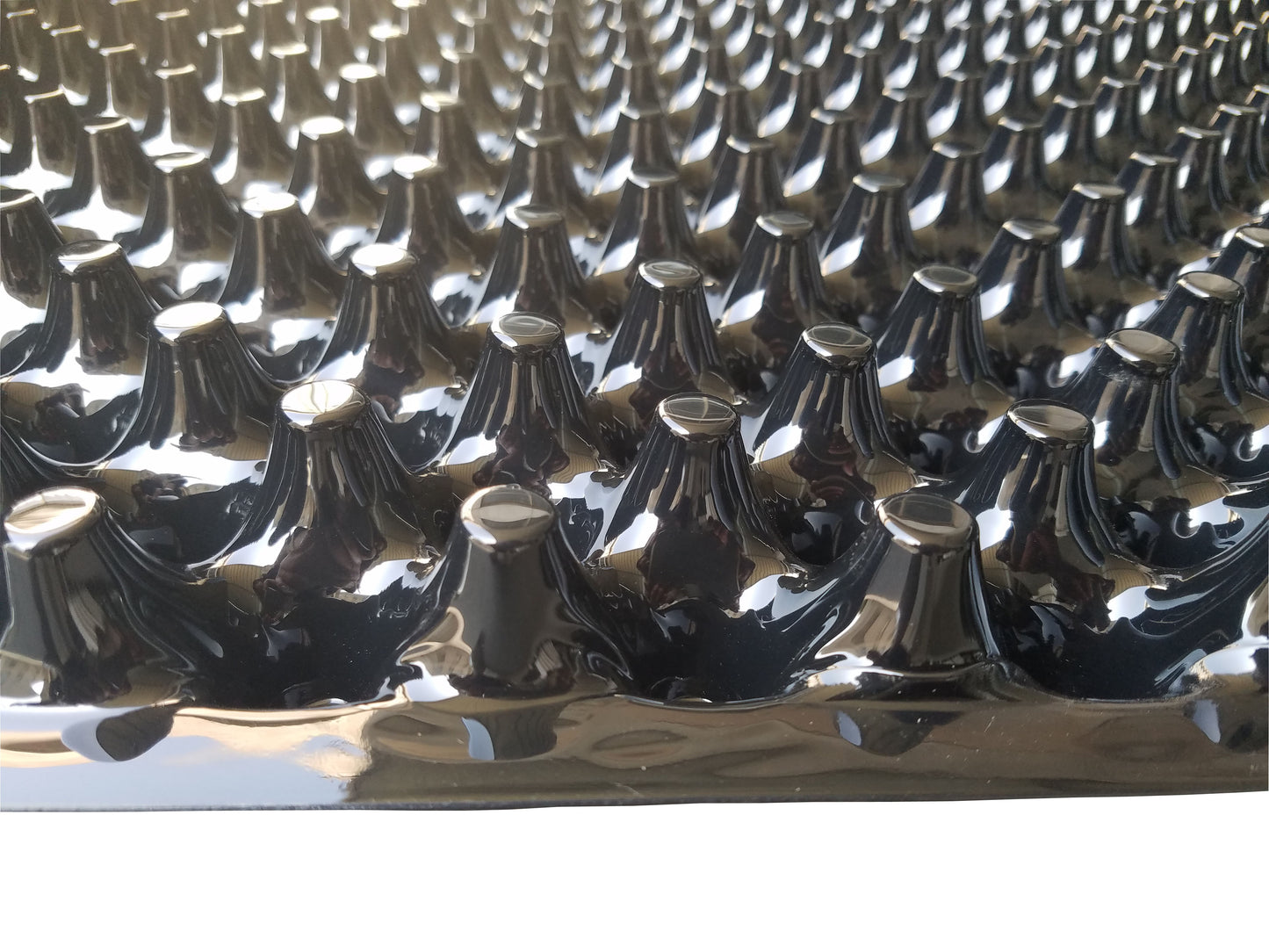

Strip Filter Drains, also known as prefabricated geocomposite drains are designed for sub-surface drainage behind shotcrete walls. They reduce hydrostatic pressure against a wall or slab and assist in maintaining the structural integrity of the wall from grade to footer. When properly installed, behind walls strip drains allow their design loads to be reduced by between 40% and 180%. Geocomposite drains are also easier to construct than aggregate drains on steep faces.


Size: 100/200/300mm x 25mm

Material: PVC

Roll Length: 50m

Flow: 130L/min/m

Compressive strength: >150kPa

Roll Dimensions (WxD in mm): 100x1300 / 200x1350 / 300x1400

Weight: 8.5/16.5/23.5kg
