InfraCell75
Panel size: 2.56m (W) x 9.75m (L) x 75mm (H)
Description
Description
GA Geocells are made of lightweight, flexible, three-dimensional, expandable panels engineered from Ecoloy HDPE for greater chemical and physical performance. Cellular Confinement Systems are a cost-effective way to stabilise soil, construct retaining walls and ensure long term erosion control.
An extensive quality control program and the latest technology ensures that GA Geocells are manufactured to the highest international standards and ultrasonically welded for maximum performance.
Specifications
Specifications
-
Height: 75mm
-
Weld spacing: 445mm
-
Material: HDPE
-
Section size: 2.56m (W) x 9.75m (L)
-
Tensile strength: >25 kN/m
-

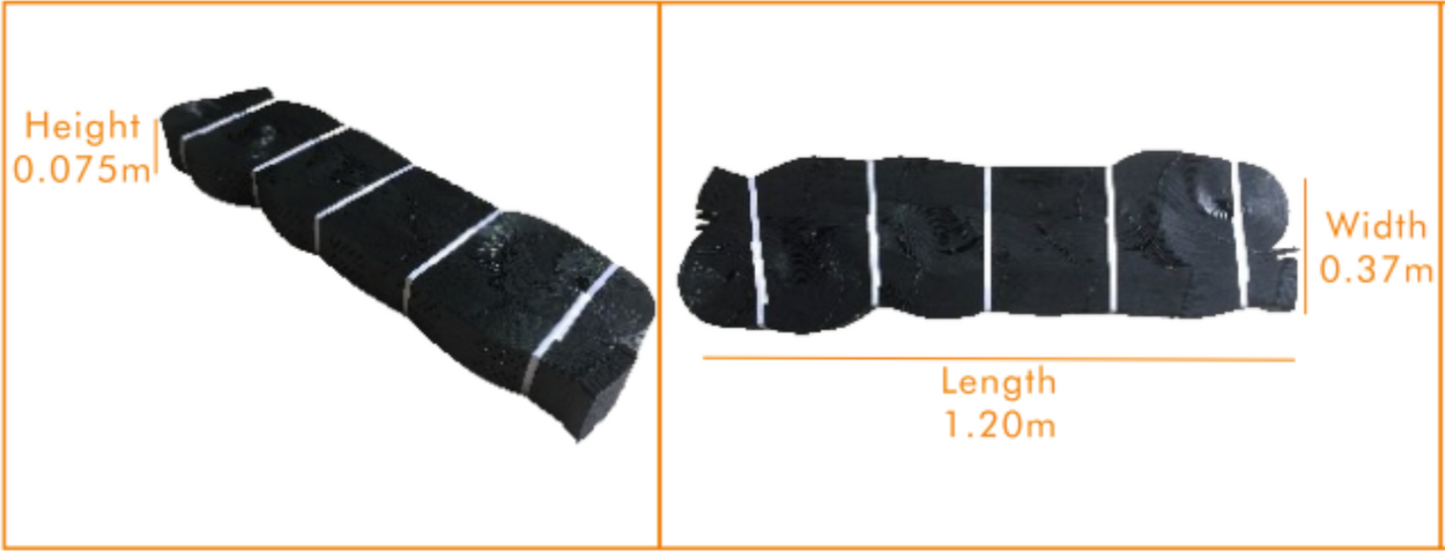

Packing dimensions: 1.2m(L) x 0.37m(W) x 0.075m(H)
- Accessories included:

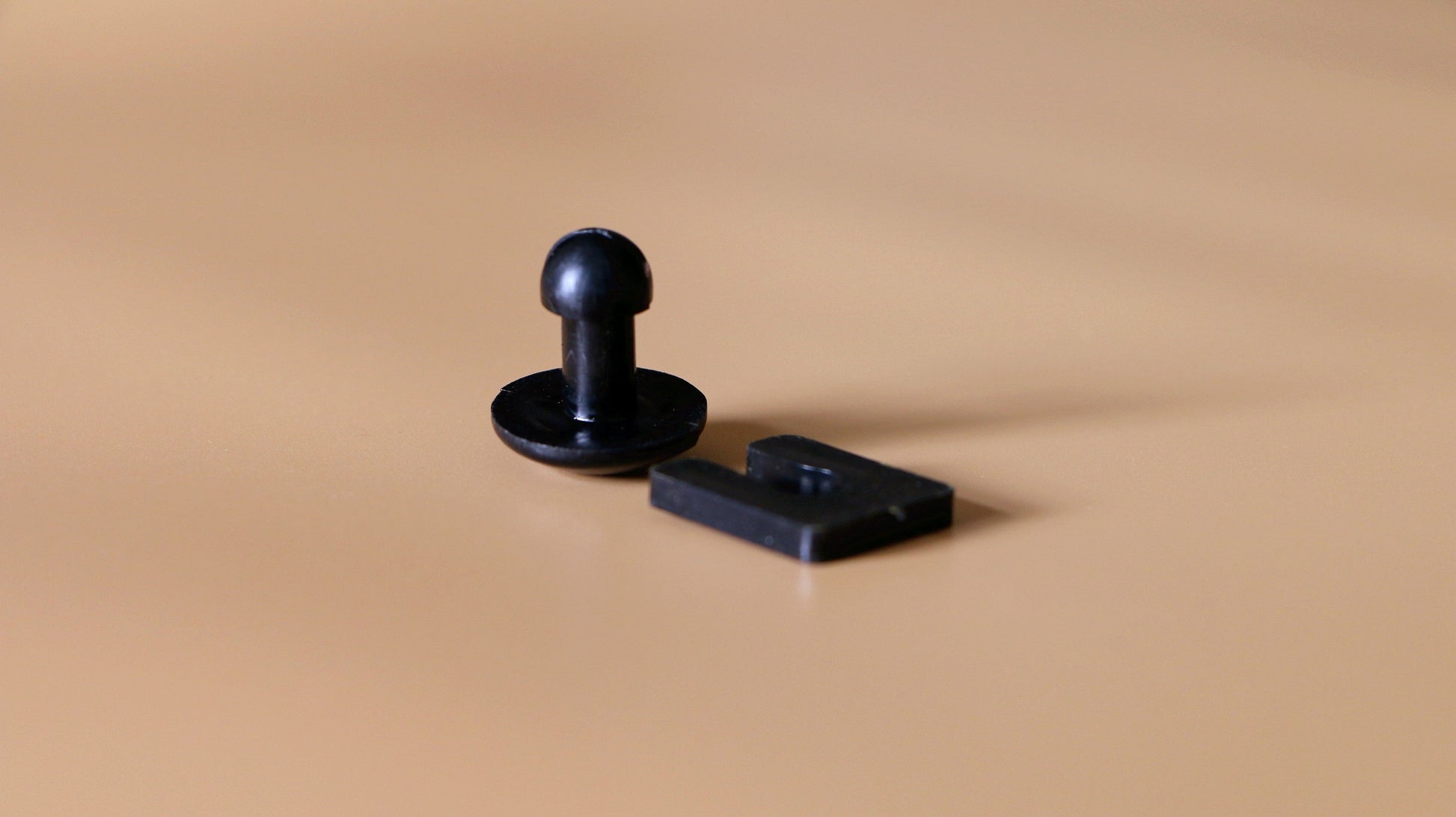

- Ecolock (42 pieces per panel), for connecting adjacent panels
- Anchor head (15 pieces per panel), for joining steel bars as an anchoring system
- * Our price includes supply of the required number of anchor clips, and connecting locks. However we don’t provide the anchors, the anchor clips we provide will support any general purpose 12 or 14mm steel anchors.
