InfraCell50

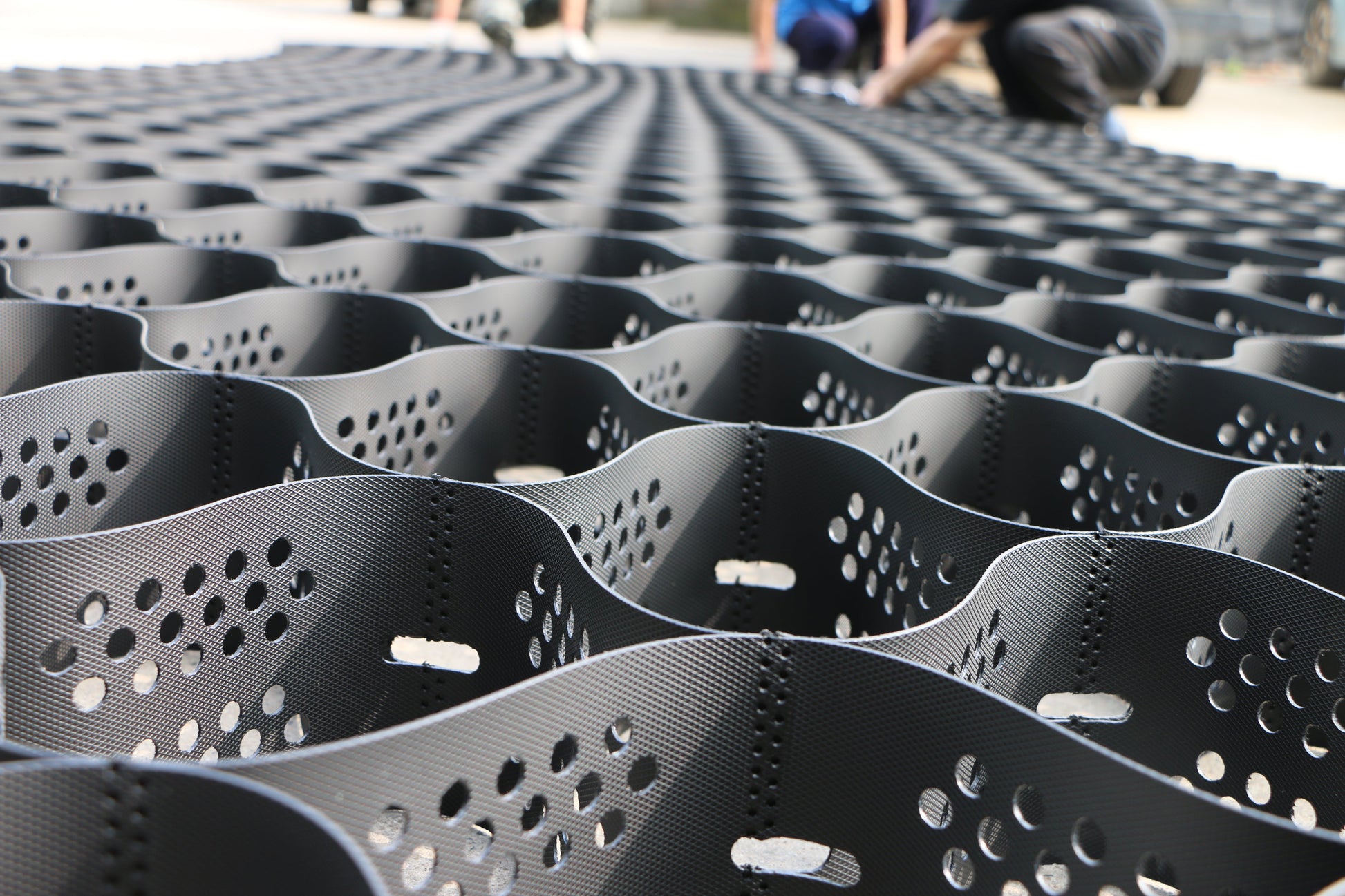

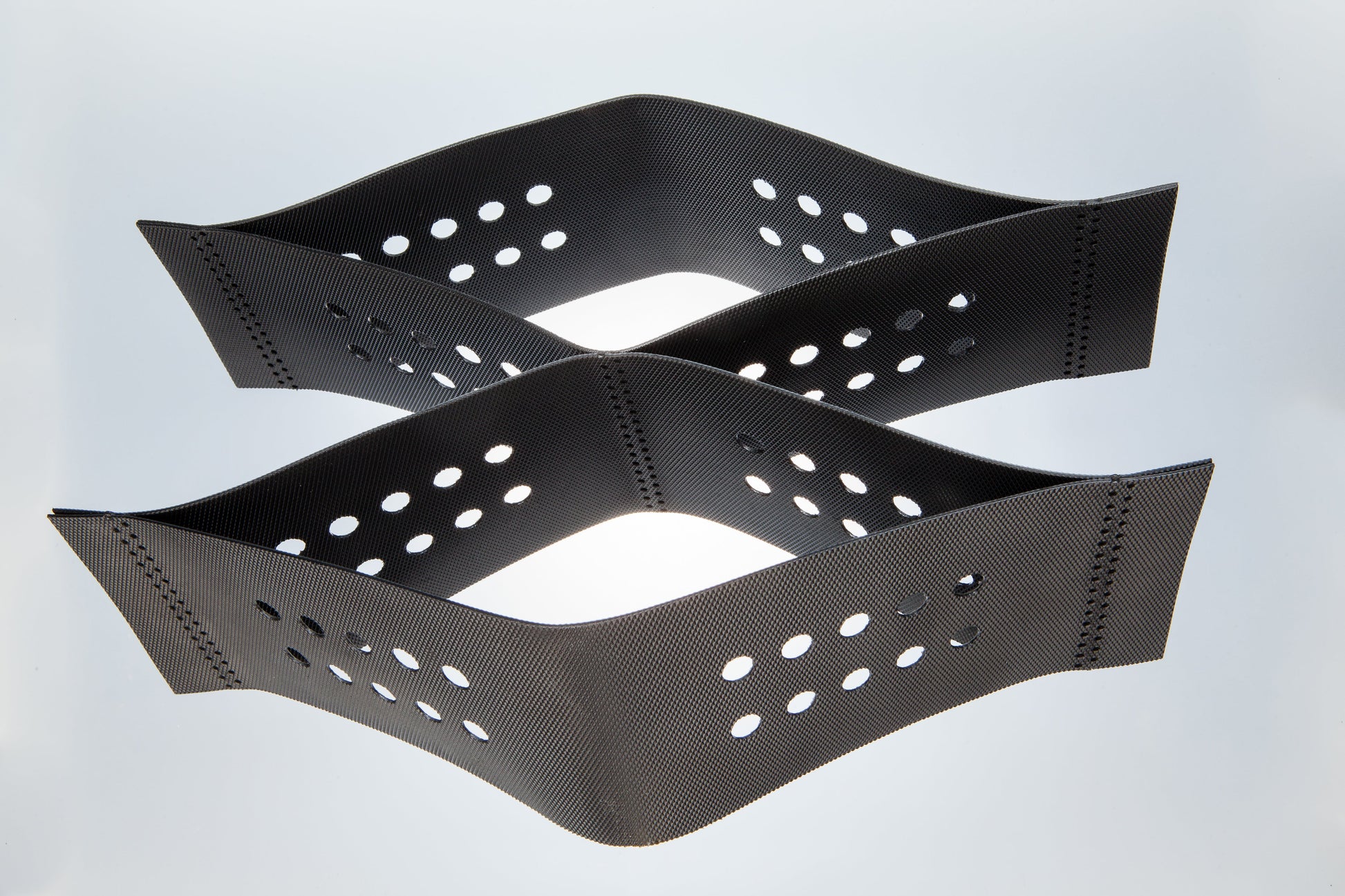

Our geocells are made of lightweight, flexible, three-dimensional, expandable panels engineered from Ecoloy HDPE for greater chemical and physical performance. Cellular Confinement Systems are a cost-effective way to stabilise soil, construct retaining walls and ensure long term erosion control.

An extensive quality control program and the latest technology ensures that our geocells are manufactured to the highest international standards and ultrasonically welded for maximum performance.

• Height: 50mm

• Weld spacing: 445mm

• Material: HDPE

• Panel size: 2.56m (W) x 8.35m (L)

• Tensile strength: >25 kN/m

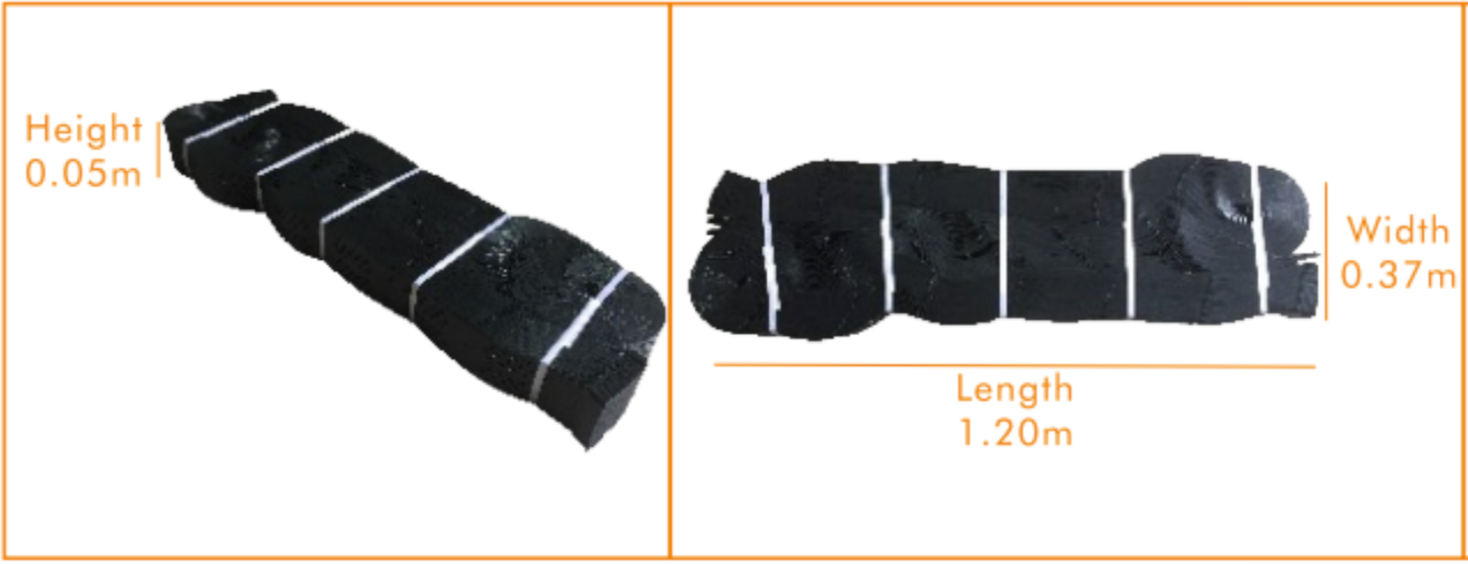

• Packing dimensions: 1.2m(L) x 0.37m(W) x 0.05m(H)

• Accessories included:

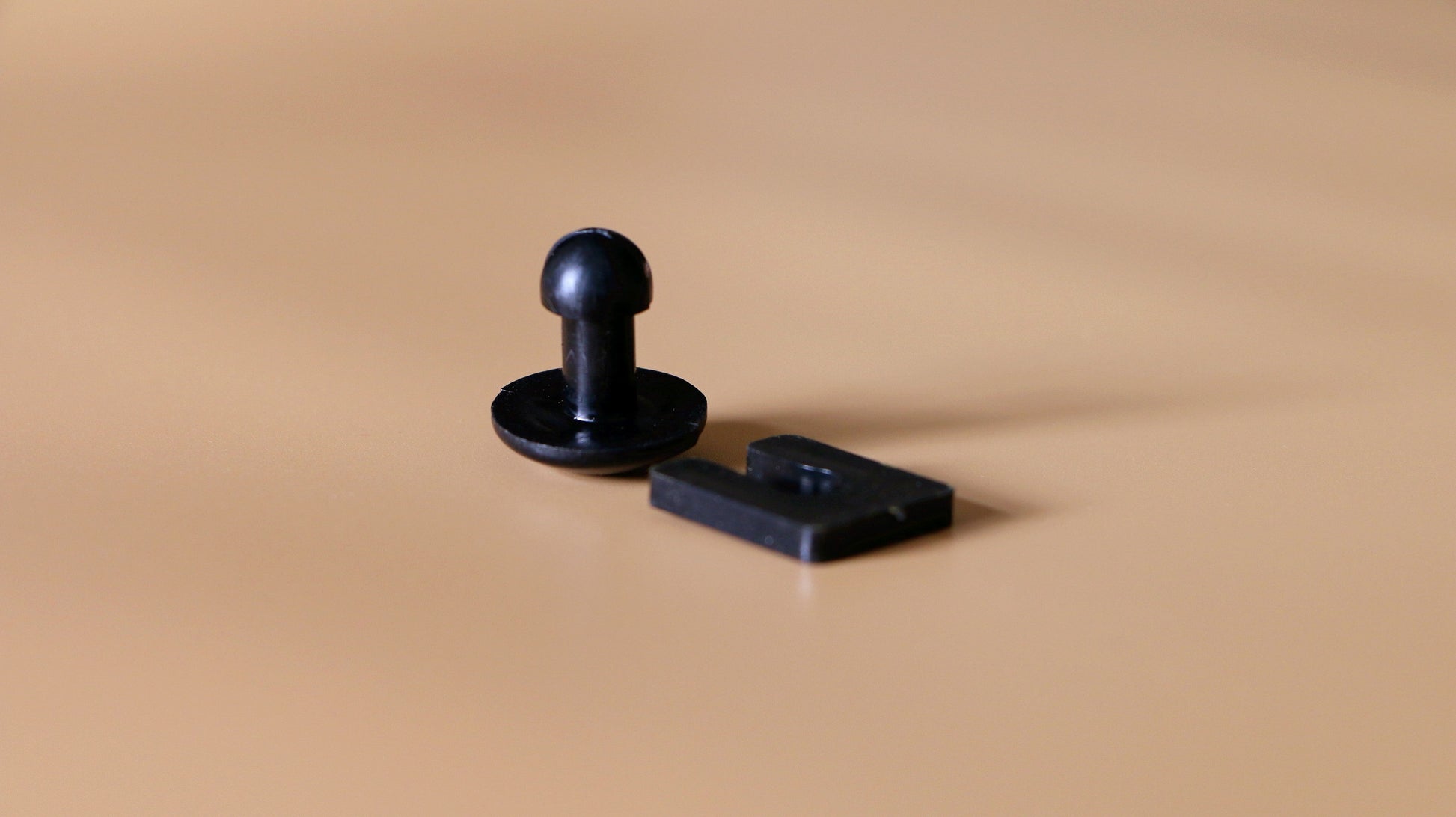

  • Ecolock (42 pieces per panel), for connecting adjacent panels

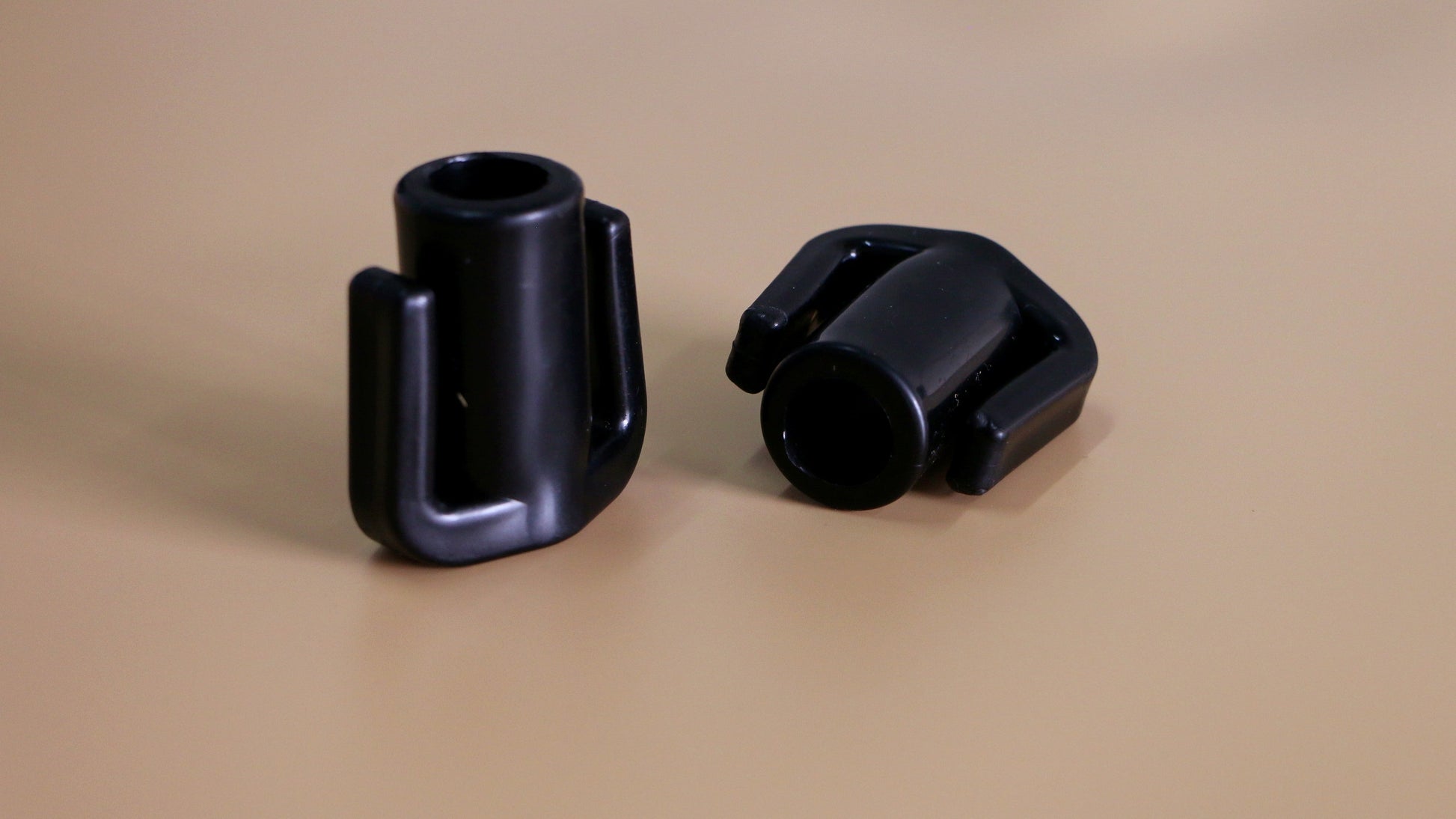

  • Anchor head (15 pieces per panel), for joining steel bars as an anchoring system
  • * Our price includes supply of the required number of anchor clips, and connecting locks. However we don’t provide the anchors, the anchor clips we provide will support any general purpose 12 or 14mm steel anchors.

* Free Shipping on all orders. Items can be expected to be delivered to site 2-3 weeks from order placement. All freight arrangements are subject to stock availability, order cut-off times and type of goods. Please call us on 03 8640 0958 to discuss your requirements.
